Relationships

There are three kinds of relationships in UML Class diagram:

• dependencies
• associations
• generalizations

We use a line (connector) to show a relationship. Different relationships are depicted differently (e.g. dashed vs solid line, arrow vs diamond head, etc.); so, pay attention to the depiction of relationships in the examples that follow.

Dependency Relationships

A dependency shows a class (somehow) uses the other one.

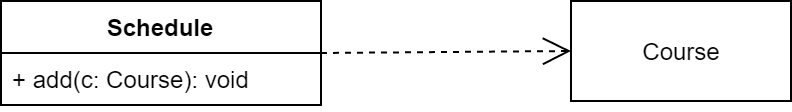

The dependency from Schedule to Course exists because Course is used in the add operation of Schedule.

A dependency may also indicate a semantic relationship between two classes.

Association Relationships

Association is used to model objects that contain other objects. Here a class holds a data field reference to the other class. For example, Course has a (field of type) Instructor:

Association represents has-a relationship. It is represented by a (solid) line between two classes.

We can indicate the multiplicity of an association by adding multiplicity adornments to the line denoting the association.

The above example indicates that a Course has one Instructor.

The above example indicates that an Instructor is associated with (teaches) one or more Course.

We can indicate the the role of an object in an association using role names.

We can also name the association.

We can specify more than one association on a pair of classes.

We can constrain the association relationship by defining the navigability of the association.

Here, a Router object requests services from a DomainNameServer object by sending messages to (invoking the operations of) the server. The direction of the association indicates that the server has no knowledge of the Router.

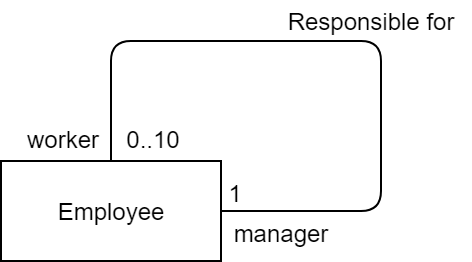

A class can have a self association.

Finally, there are special associations called aggregations and compositions.

Aggregation

An aggregation specifies a whole-part relationship between an aggregate (a whole) and a constituent part, where the part can exist independently from the aggregate. Aggregations are denoted by a hollow-diamond adornment on the association.

Composition

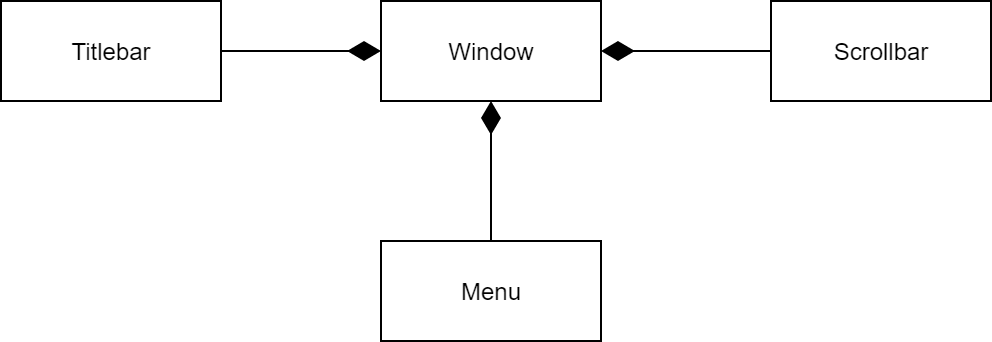

A composition indicates a strong ownership and coincident lifetime of parts by the whole (i.e., they live and die as a whole). Compositions are denoted by a filled-diamond adornment on the association.

Generalization Relationships

A generalization specifies "is a kind of" (or simply is-a) relationship. It is most commonly used to depict any inheritance hierarchy.

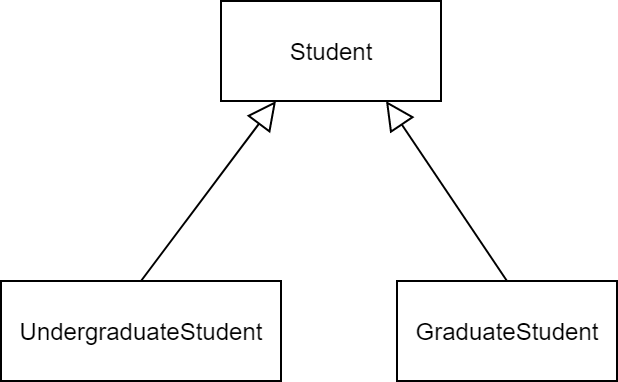

The above example shows that the classes UndergradStudent and GradStudent are each derived from the class Student.

Generalization is represented by an arrow with a hollow head points to the superclass. If a class implements an interface, you draw an arrow having a dotted shaft and hollow head from the class to the interface.

info

Abstract classes and interfaces may be shown using the textual annotation <<abstract>> and <<interface>> above or below their name.
